800kg Pickup Crane
BRAND NEW | 800kg CAPACITY | 3.6m MAXIMUM REACH

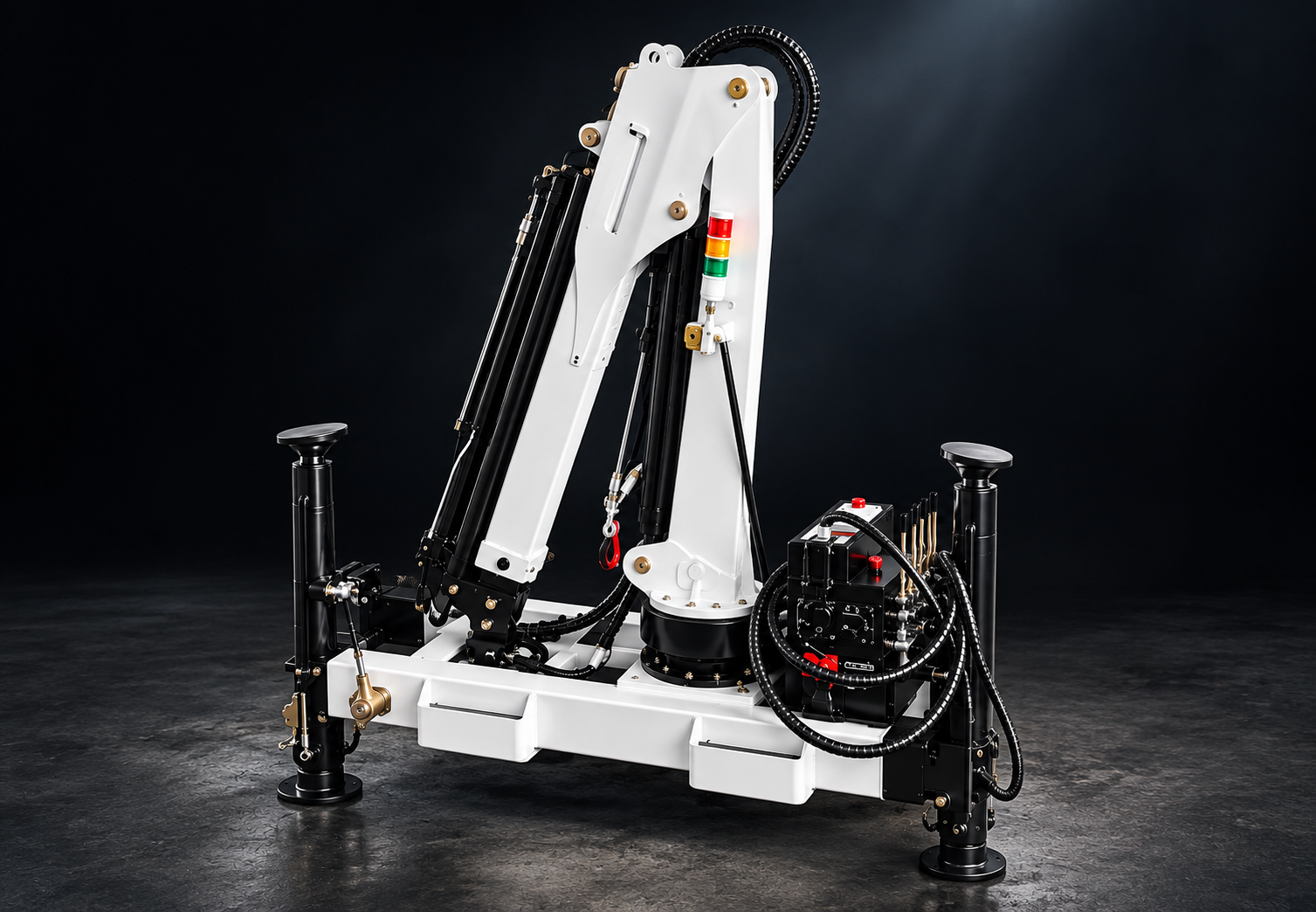

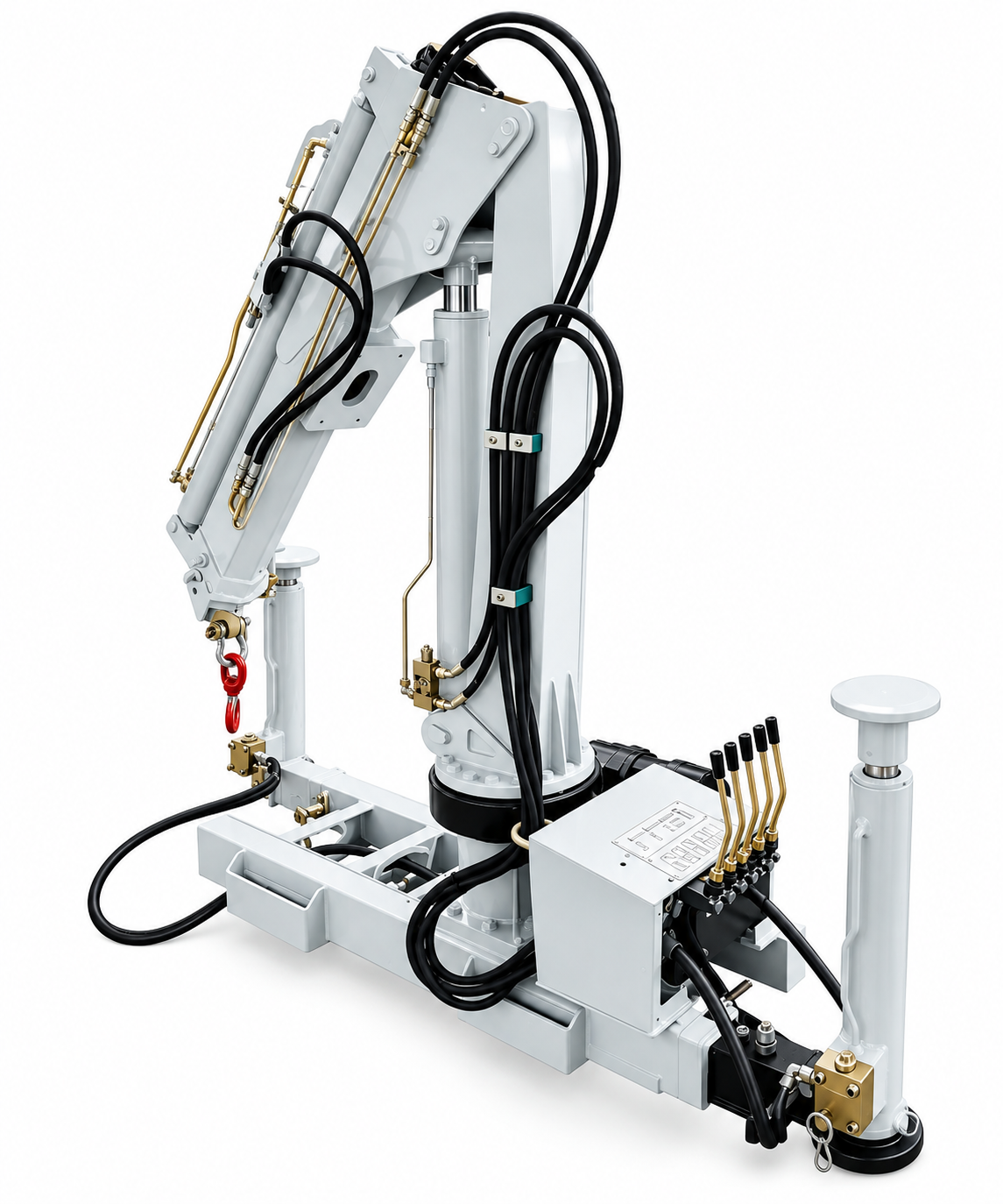

Brand new 2026 SKPL-LIFT SQ08ZB2+1 compact pickup crane designed for installation on suitable pickups and light trucks.
The SQ08ZB2+1 offers a maximum lifting capacity of 800kg at 1.13m, a maximum reach of 3.6m and 330° slewing.
Powered by a compact 12V or 24V electric-hydraulic system and supplied with outriggers as standard, the SQ08ZB2+1 provides a practical lifting solution for service vehicles, maintenance operations, light construction, logistics and general material-handling applications.
Manufacturer: SKPL-LIFT
Model: SQ08ZB2+1
Year: 2026
Condition: Brand New
Crane Type: Pickup / Light Truck Crane
Maximum Lifting Capacity: 800kg
Maximum Lifting Moment: 1.0 tonne-metre
Maximum Reach: 3.6m
Slewing Angle: 330°
Crane Self Weight: 360kg
800kg @ 1.13m
438kg @ 2.00m
312kg @ 2.70m
200kg @ 3.60m

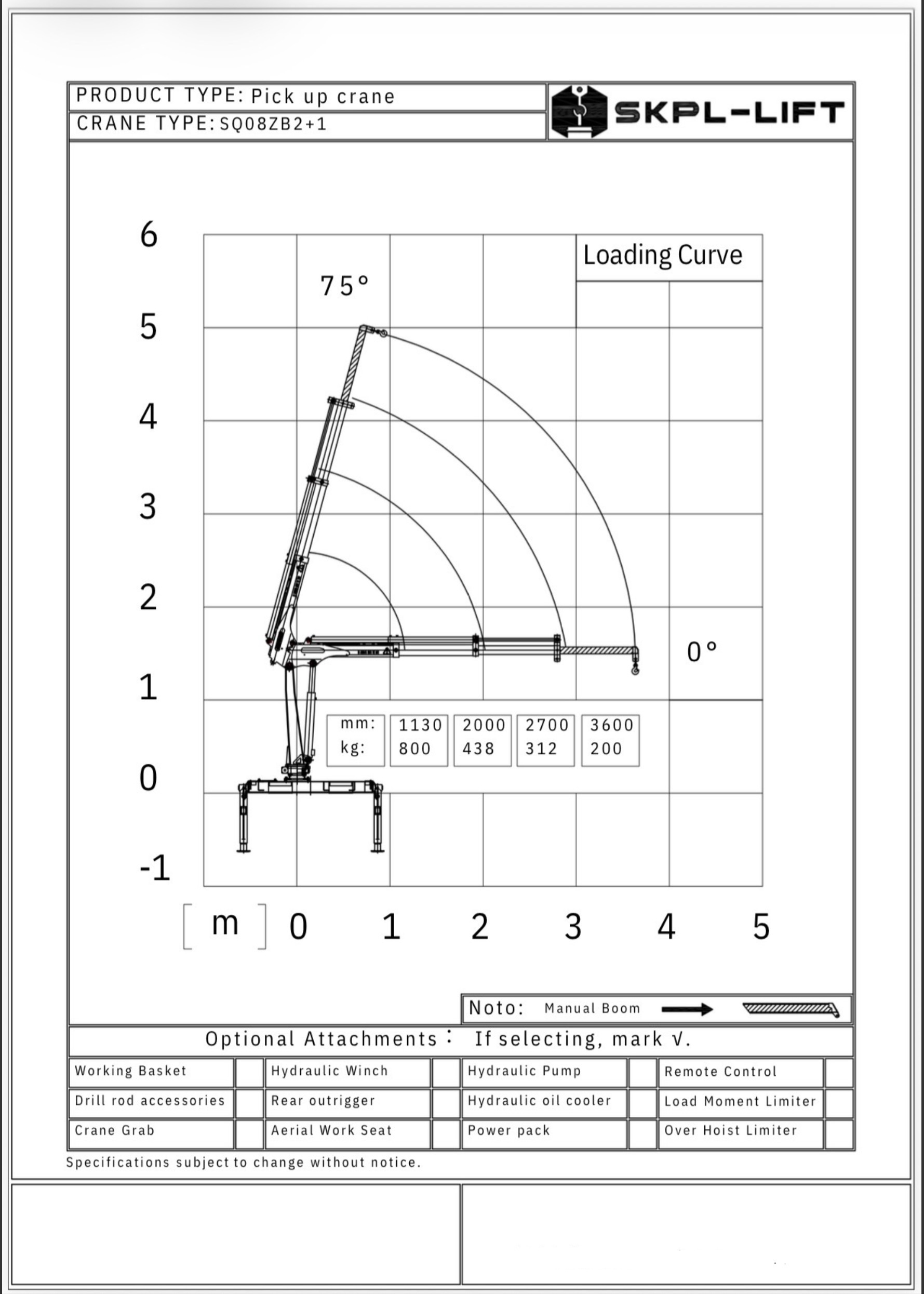

Refer to the manufacturer’s load chart included in the image gallery for complete operating information and limitations.
Minimum Boom Reach: Approx. 1,265mm
Maximum Boom Reach: Approx. 3,700mm
Folded Height: Approx. 1,467mm
Installation Space: 500mm

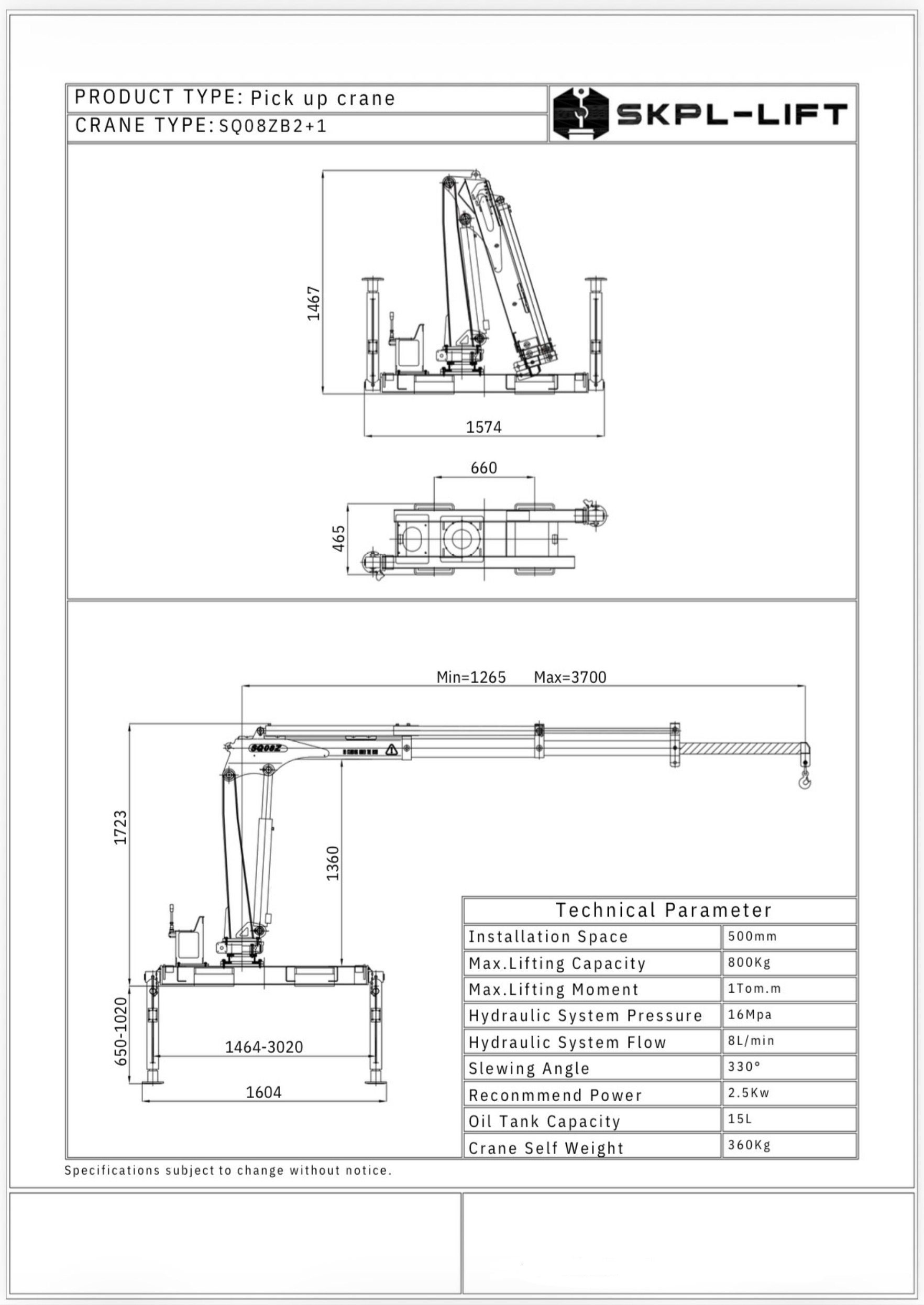

Refer to the manufacturer’s dimensional drawing included in the image gallery for detailed measurements and installation dimensions.
Maximum Hydraulic Pressure: 16MPa
Recommended Hydraulic Flow: 8L/min
Hydraulic Oil Capacity: 15L
Recommended Power: 2.5kW
Power System: Electric-Hydraulic
Electrical Supply: 12V or 24V
Configuration: Electric-Hydraulic
Designed for integration with a suitable vehicle electrical system.
• Outriggers
• Load Indicator
• Emergency Stop
• Hydraulic Hose Guarding
• Electric-Hydraulic Power Pack
• Lifting Hook
• Manual Crane Controls
The equipment vendor advises that the SKPL-LIFT SQ08ZB2+1 has been certified for compliance with AS 1418.1 and AS 1418.11.
PRICE
$9,685 + GST
Vehicle suitability, mounting requirements, electrical installation and final crane configuration should be confirmed prior to purchase.
Specifications, capacities, dimensions and technical information are based on information supplied by the equipment vendor and should be independently verified by the purchaser.
DISCLAIMER
Information, specifications, images and compliance details have been supplied by the equipment vendor and are provided for general advertising purposes.
Prospective purchasers should independently verify specifications, capacities, dimensions, suitability, compliance and installation requirements prior to purchase.
Crane Choice Pty Ltd acts solely as an advertising and marketing service and is not the manufacturer, supplier or dealer of the advertised equipment.
Equipment is subject to availability and may be withdrawn or sold without notice.
