800kg Marine / Truck Mounted Pickup Crane with Winch
BRAND NEW | 800kg CAPACITY | 3.6m MAXIMUM REACH | WINCH EQUIPPED
Brand new 2026 SKPL-LIFT SQ08ZB2MW+1 compact pickup crane designed for marine, service vehicle and light truck applications where a lightweight and versatile onboard lifting solution is required.
The SQ08ZB2MW+1 offers a maximum lifting capacity of 800kg at 1.13m, extending to a maximum working reach of 3.6m with a rated capacity of 200kg.
For marine applications, the boom and crane structure feature an 80μm zinc-rich anti-corrosion coating, providing additional protection in saltwater and harsh marine environments.
With a crane self weight of only 320kg, compact folded dimensions, 330° slewing and an integrated winch, this crane provides a practical lifting solution without the size and weight of a larger truck-mounted crane.
Suitable applications may include marine vessels, service and maintenance vehicles, light trucks, equipment handling, construction, logistics, agricultural operations and general material handling.
Manufacturer: SKPL-LIFT
Model: SQ08ZB2MW+1
Year: 2026
Condition: Brand New
Crane Type: Marine / Truck Mounted Pickup Crane
Maximum Lifting Capacity: 800kg @ 1.13m
Maximum Lifting Moment: 1.0 tonne-metre
Maximum Working Reach: 3.6m
Slewing Angle: 330°
Crane Self Weight: 320kg
Winch: Included
800kg @ 1.13m
438kg @ 2.00m
312kg @ 2.70m
200kg @ 3.60m

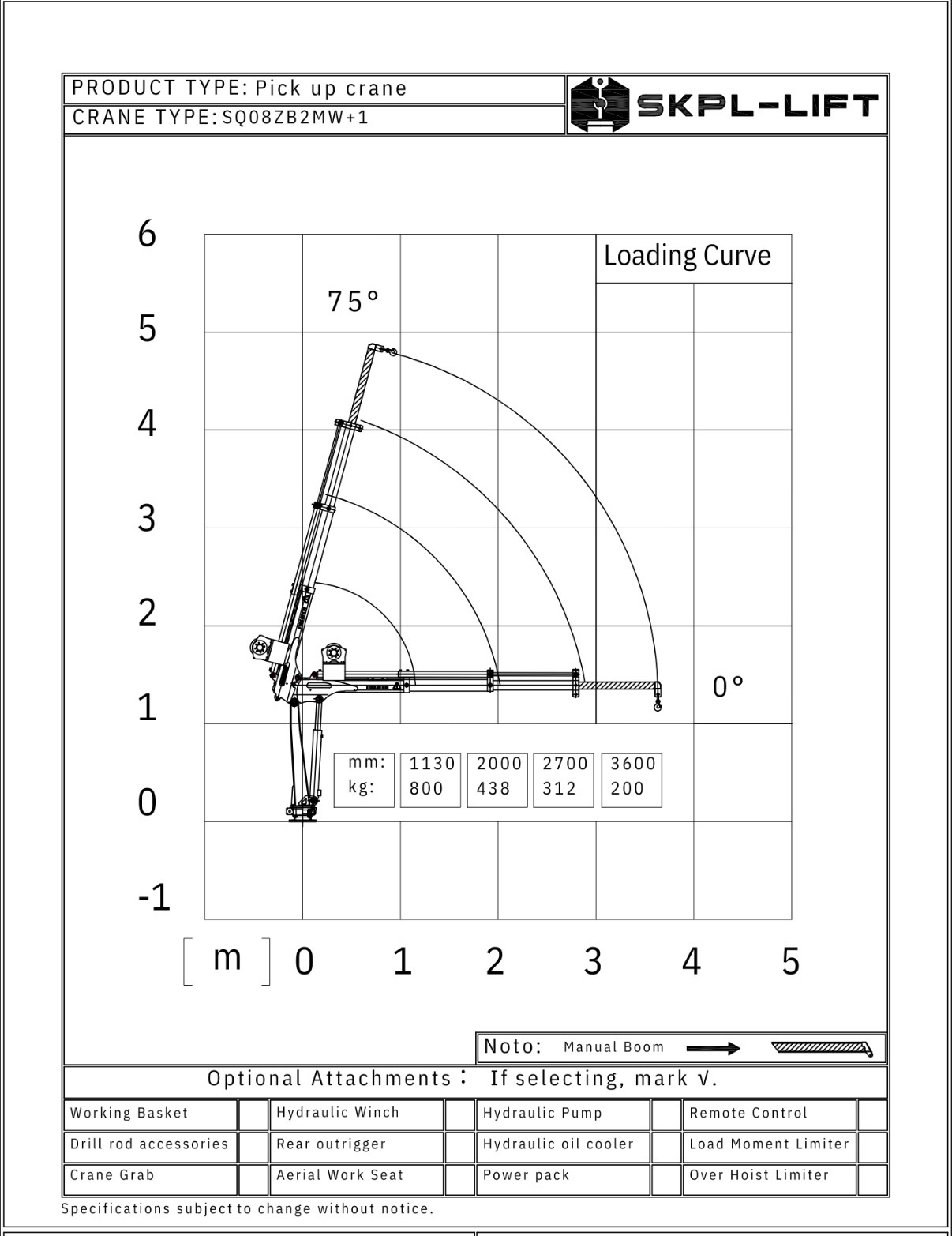

Refer to the manufacturer’s load chart included in the image gallery for complete operating information, rated capacities and limitations.
Minimum Boom Reach: Approx. 1,265mm
Maximum Boom Reach: Approx. 3,700mm
Overall Height Shown: Approx. 1,577mm
Folded Height: Approx. 1,321mm
Folded Length: Approx. 1,071mm
Folded Width: Approx. 302mm

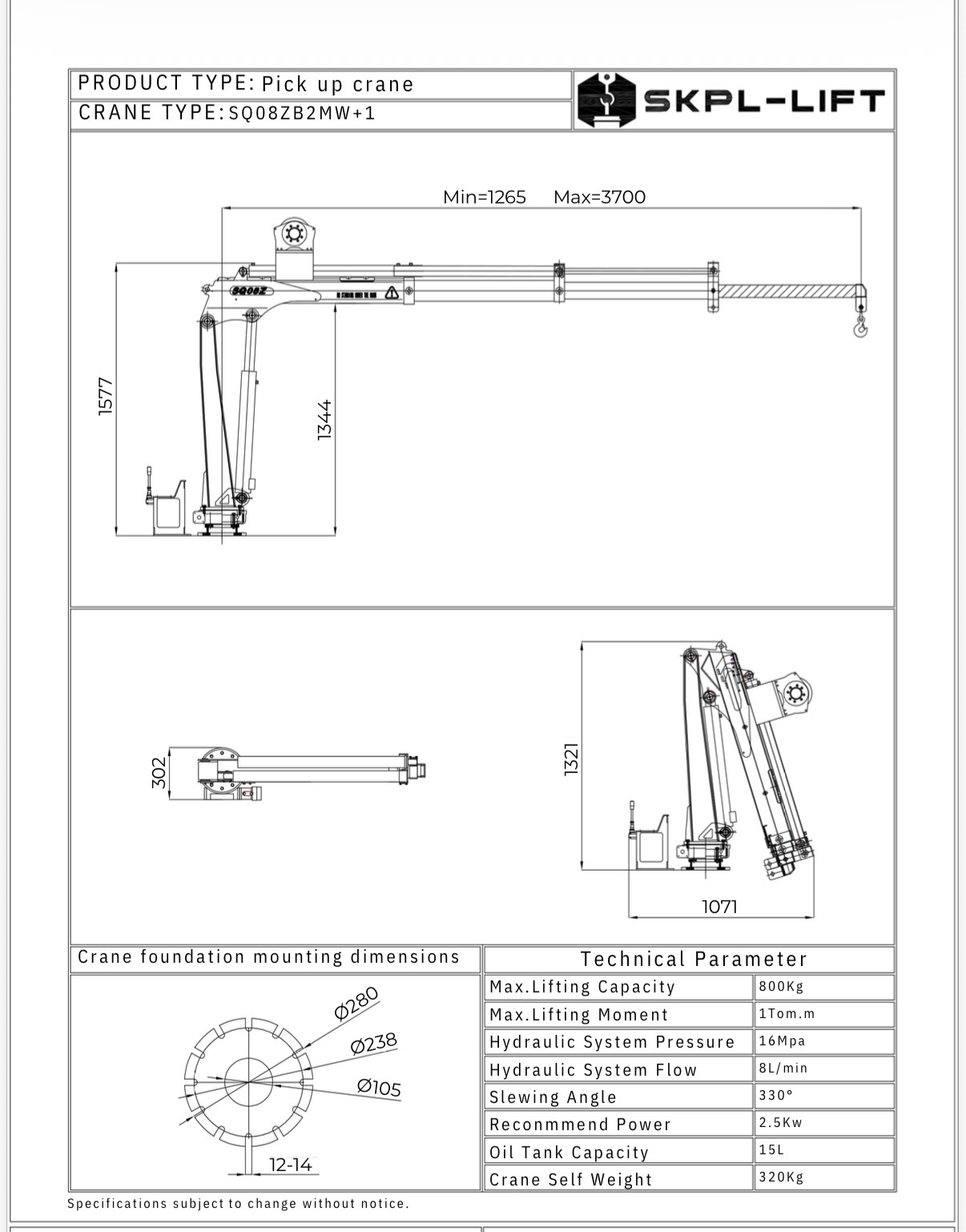

Refer to the manufacturer’s dimensional drawing included in the image gallery for mounting dimensions and detailed measurements.
Maximum Hydraulic Pressure: 16MPa
Recommended Hydraulic Flow: 8L/min
Hydraulic Oil Capacity: 15L
Recommended Power: 2.5kW
Maximum Lifting Moment: 1.0 tonne-metre
The boom and crane structure feature a zinc-rich anti-corrosion coating with an 80μm coating thickness, providing additional corrosion protection for marine and other demanding operating environments.
• Hydraulic winch
• Load indicator
• Emergency stop
• Hydraulic hose guarding
• 12V or 24V electric-hydraulic pump
Wireless Remote Control: Available
Spares Kits: Available

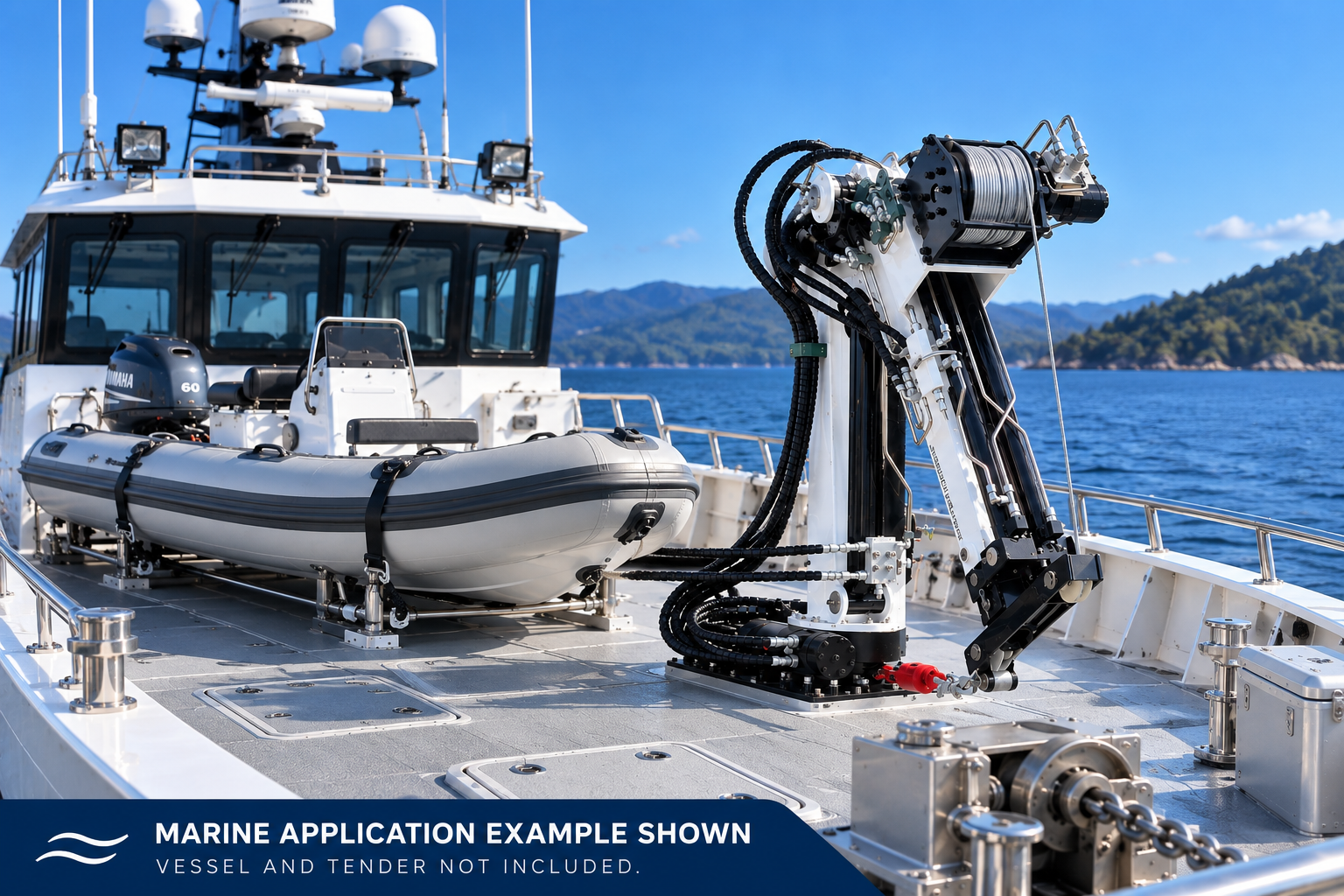

• Marine vessels and marine service applications
• Light trucks and service vehicles
• Equipment loading and unloading
• Construction and site operations
• Logistics and transport applications
• Agricultural and rural applications
• General material handling
The equipment vendor advises that the SKPL-LIFT SQ08ZB2MW+1 has been certified for compliance with AS 1418.1 and AS 1418.11.
PRICE
$8,845 + GST
With Wireless Remote: $11,180 + GST
Interested in this crane?
Contact Crane Choice for current availability, further information and purchasing enquiries.
Vessel or vehicle suitability, structural capacity, mounting requirements, hydraulic and electrical installation and final crane configuration must be confirmed prior to installation or purchase.
Installation on a truck or other vehicle is subject to appropriate engineering, vehicle capacity and applicable regulatory requirements.
DISCLAIMER
Specifications, capacities, dimensions, images and compliance information are based on information supplied by the equipment vendor and should be independently verified by the purchaser.
Crane Choice Pty Ltd acts solely as an advertising and marketing service and is not the manufacturer, supplier or dealer of the advertised equipment. Equipment is subject to availability and may be withdrawn or sold without notice.
